Screw Piles for Garage Foundation: The Ultimate Solution for Alberta Outbuildings
- DownForce Piling
- Feb 26
- 3 min read
When homeowners in Calgary plan a detached garage, a "man cave," or a massive garden shed, they often default to the same foundation: a thick, expensive concrete slab.
While concrete has been the standard for decades, it comes with a host of headaches—massive excavation, weeks of curing time, and the inevitable cracking caused by Alberta’s shifting clay soils.
If you are looking for a faster, more stable, and more cost-effective way to build, it’s time to look at screw piles for garage foundation.
1. The End of the "Gumbo" Nightmare
Calgary’s soil is notorious for being "gumbo" clay. This soil expands when wet and contracts when dry. For a traditional concrete slab, this movement is the enemy. Over time, the soil shifts, the slab cracks, and your garage door suddenly doesn't close properly.
By using screw piles for garage foundation support, you bypass the active soil layers entirely.
The Anchor Effect: Screw piles are torqued deep into the stable, non-active soil (often 7 to 10 feet deep in Calgary).
Frost Protection: Unlike a shallow slab that "rides" the frost, a screw pile stays anchored below the frost line, meaning your garage stays level even during the most brutal Alberta winter.
2. Speed: From Ground to Framing in 24 Hours
One of the biggest advantages of using screw piles for garage foundation is the timeline.
The Concrete Way: Excavate, build forms, pour concrete, wait 28 days for a full cure.
The Down Force Way: We install the piles and a grade beam system. You can start framing the walls the very same afternoon.
Comparison at a Glance: Concrete Slabs vs. Screw Piles for Garage Foundations
Feature | Traditional Concrete Slab | Screw Pile & Grade Beam |
Installation Time | 3–5 Days + Curing | 4–8 Hours |
Site Mess | Massive excavation & dirt piles | Zero excavation or cleanup |
Winter Install? | No (requires heating/tents) | Yes (installed year-round) |
Total Cost | High labor & site prep costs | Often more cost-efficient |
3. Minimal Site Impact (Save Your Yard!)
A traditional garage foundation requires a massive hole and the removal of tons of dirt. This often means heavy dump trucks and excavators tearing up your lawn and driveway.

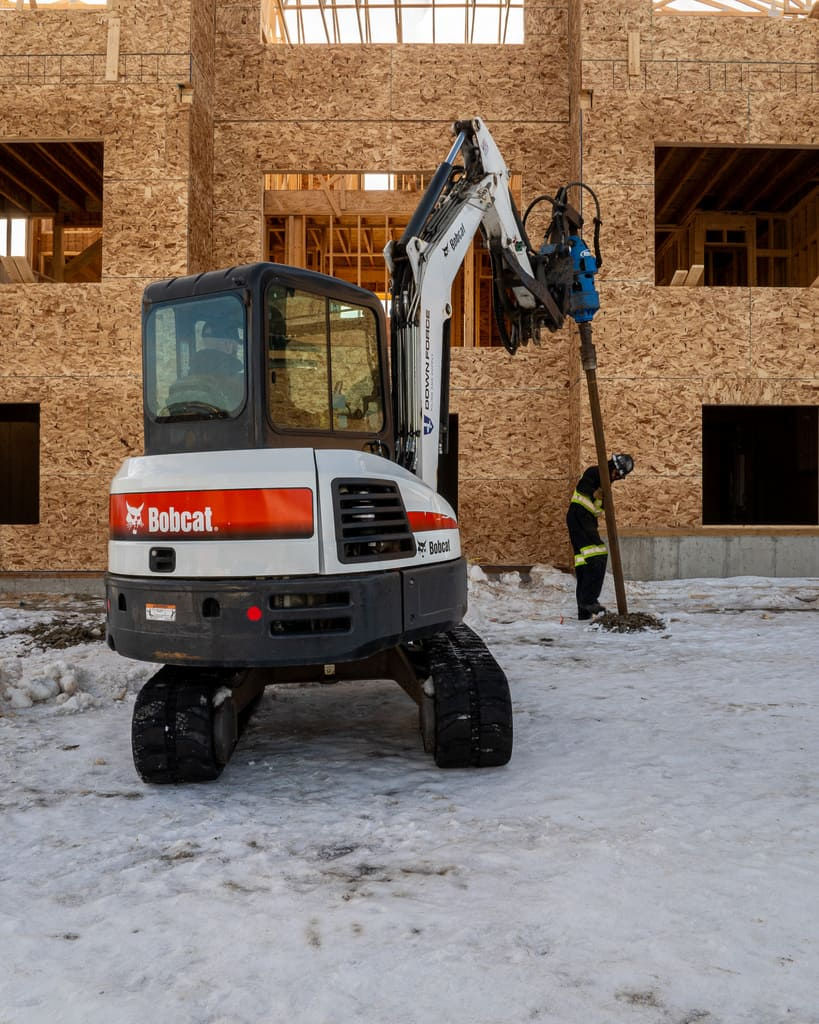

Because we use compact, high-torque machinery, we can install the foundation without leaving a trace. There are no piles of dirt to haul away and no massive craters in your backyard.
Questions & Answers: Your Garage Foundation FAQ
Can I have a concrete floor if my garage is on screw piles?
Absolutely. The most common method is to install a grade beam (a structural perimeter beam) on top of the screw piles. A "void form" is placed under the beam to protect against soil expansion, and the concrete floor is then poured inside this stable perimeter.
How much do screw piles for a garage foundation cost?
In Alberta, standard residential screw piles typically cost between $300 and $900 per pile installed, depending on depth and load requirements. While the materials are premium, the massive savings on excavation, soil removal, and labor often make the total project cost lower than a traditional deep concrete footing.
Do I need a building permit for screw piles in Calgary?
Yes. The City of Calgary requires a building permit for any detached garage larger than 10 square meters (107 sq. ft.). For a screw piles for garage foundation project, you will likely need engineered and stamped drawings to ensure code compliance, which we can help facilitate.
How many screw piles will my garage need?
This depends on the size and weight of your building. A standard double garage typically requires 6 to 10 piles. We generally space piles 8 to 10 feet apart, placing them at every corner and under critical load points like the garage door headers.
Will the metal piles rust in the Calgary soil?
No. All professional-grade helical piles are hot-dip galvanized. This metallurgical bond creates a protective coating that is specifically designed to withstand Alberta's alkaline clay soils, providing a maintenance-free foundation lifespan of 75+ years.
The Verdict: Your Foundation is No Place to Shortcut
If your project matters, its foundation matters. Choosing screw piles for garage foundation ensures you get a documented torque report and an engineered seal—something a DIY kit or a simple concrete slab can't always guarantee.
Ready to start your garage project? Contact Down Force Piling today for a quote on a professional foundation that will outlast the garage it's built under.
